Series 2400 powder and pellet receivers provide high capacity vacuum sequencing systems for powder, pellet, regrind and granular materials.
The receivers utilize a common vacuum blower package and are primarily used on multiple destination applications.
(with standard gravity discharge gate)
| Model | Receiving Volume | Conveying Rate |
| 2406 Pellet | 1 dm3 [0.039 ft3] | 327 kg/h [720 lb/h] |
| 2410 Pellet | 11.7 dm3 [0.41 ft3] | 1180 kg/h [2600 lb/h] |
| 2415 Pellet | 28.5 dm3 [1 ft3] | 2722 kg/h [6000 lb/h] |
| 2424 Pellet | 134 dm3 [4.74 ft3] | 6800 kg/h [15000 lb/h] |
Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.
Hazardous location options (ATEX, NEC) available.
(with standard gravity discharge gate)
| Model | Receiving Volume | Conveying Rate |
| 2410 Powder | 11.7 dm3 [0.41 ft3] | 408 kg/h [900 lb/h] |
| 2415 Powder | 28.5 dm3 [1 ft3] | 1000 kg/h [2200 lb/h] |
| 2420 Powder | 33 dm3 [1.16 ft3] | 1225 kg/h [2700 lb/h] |
| 2423 Powder | 70.8 dm3 [2.05 ft3] | 1406 kg/h [3100 lb/h] |
| 2424 Powder | 134 dm3 [4.74 ft3] | 3175 kg/h [7000 lb/h] |
Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.
Hazardous location options (ATEX, NEC) available.

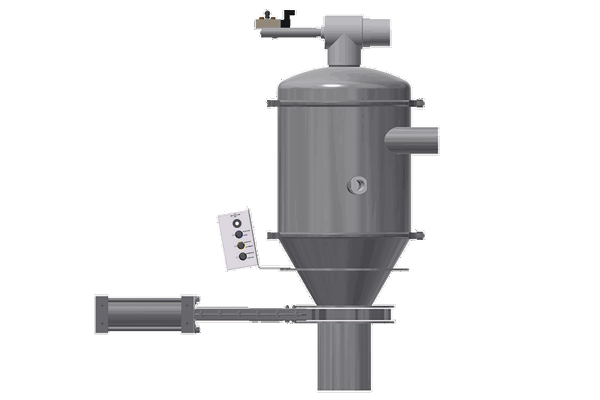

(with discharge valve for refilling feeders)
| Model | Receiving Volume | Conveying Rate |
| 2410 Pellet | 9.7 dm3 [0.34 ft3] | 1180 kg/h [2600 lb/h] |
| 2415 Pellet | 22.8 dm3 [0.8 ft3] | 2722 kg/h [6000 lb/h] |
| 2424 Pellet | 106 dm3 [3.74 ft3] | 6800 kg/h [15000 lb/h] |
Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.
Hazardous location options (ATEX, NEC) available.
(with discharge valve for refilling feeders)
| Model | Receiving Volume | Conveying Rate |
| 2410 Powder | 9.7 dm3 [0.34 ft3] | 408 kg/h [900 lb/h] |
| 2415 Powder | 22.8 dm3 [0.8 ft3] | 1000 kg/h [2200 lb/h] |
| 2420 Powder | 19.8 dm3 [0.7 ft3] | 1225 kg/h [2700 lb/h] |
| 2423 Powder | 44 dm3 [1.55 ft3] | 1406 kg/h [3100 lb/h] |
| 2424 Powder | 106 dm3 [3.74 ft3] | 3175 kg/h [7000 lb/h] |
Note: Rates are based on a system profile of 15.2 m [50 ft] horizontal, 4.6 m [15 ft] vertical, 3 m [10 ft] hose, 2 x 90° bends. Convey rates may vary depending on product characteristics and conveying distance.
Hazardous location options (ATEX, NEC) available.
