KEK Cone Mill

Want to find out more about this offering?

Get in touch
Versatile milling & grinding

Intermediate mills and granulators

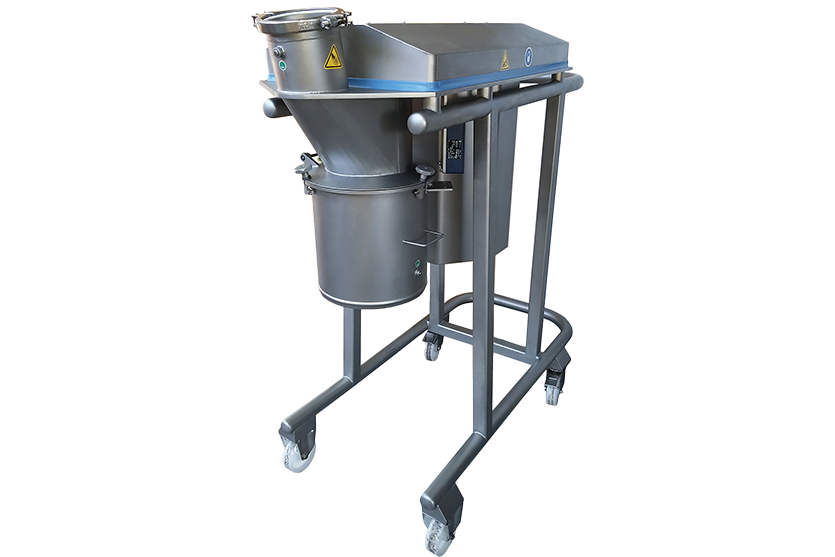

The KEK Cone Mill is ideal for sizing in both wet and dry granulation processes. It carefully mills and grinds material, at high speed, to produce a uniform and consistent size. The KEK Cone Mill is globally recognized as one of the most versatile size reduction milling machines, due to the wide range of materials it processes.

KEK Cone Mills have the ability to take a wide range of feed material and produce an equally wide range of product, making this milling machine ideal for intermediate sizing in both wet and dry granulation. For maximum process versatility, it also includes variable speed control.

Features and Benefits

  • High efficiency operation, gentle grinding motion
  • Low dust; reducing air filtration installation costs
  • Low noise; benefiting the operator
  • Low levels of heat generation – essential for when milling heat sensitive products
  • Variable speed drive, for even greater control
  • Multiple drive configurations, providing higher flexibility
  • Process Versatility: Through variable speed, cone hole shape and size, and rotor gap
  • Patented Rotor Gap Adjustment: No loose spare washers
  • Particle Size Range: D50 from 500μ to < 250μ

Related Industries

  • Plastics
  • Plastics Recycling
  • Chemicals
  • Batteries
  • Food & Pet Food
  • Pharmaceutical
  • Nonwovens

Range Information

  • 7 model sizes
  • From 3” to 25” diameter cones (75 mm to 640 mm)
  • Underdriven and top driven models available
  • Belt, gearbox and direct motor models available





Technical Data

  • Grinds material into a uniform size, ensuring consistent quality control
  • Versatile performance to mill and grind a wide variety of materials
  • Ideal even for fatty, heat sensitive and moist products
  • Variable particle size ranging from D50 – 500μ to < 250μ
  • High efficiency operation, gentle grinding motion
  • Low dust; reducing air filtration installation costs
  • Low noise; benefiting the operator
  • Low levels of heat generation – essential for when milling heat sensitive products
  • Variable speed drive, for even greater control
  • Multiple drive configurations, providing higher flexibility

Literature Downloads

Video

Play video

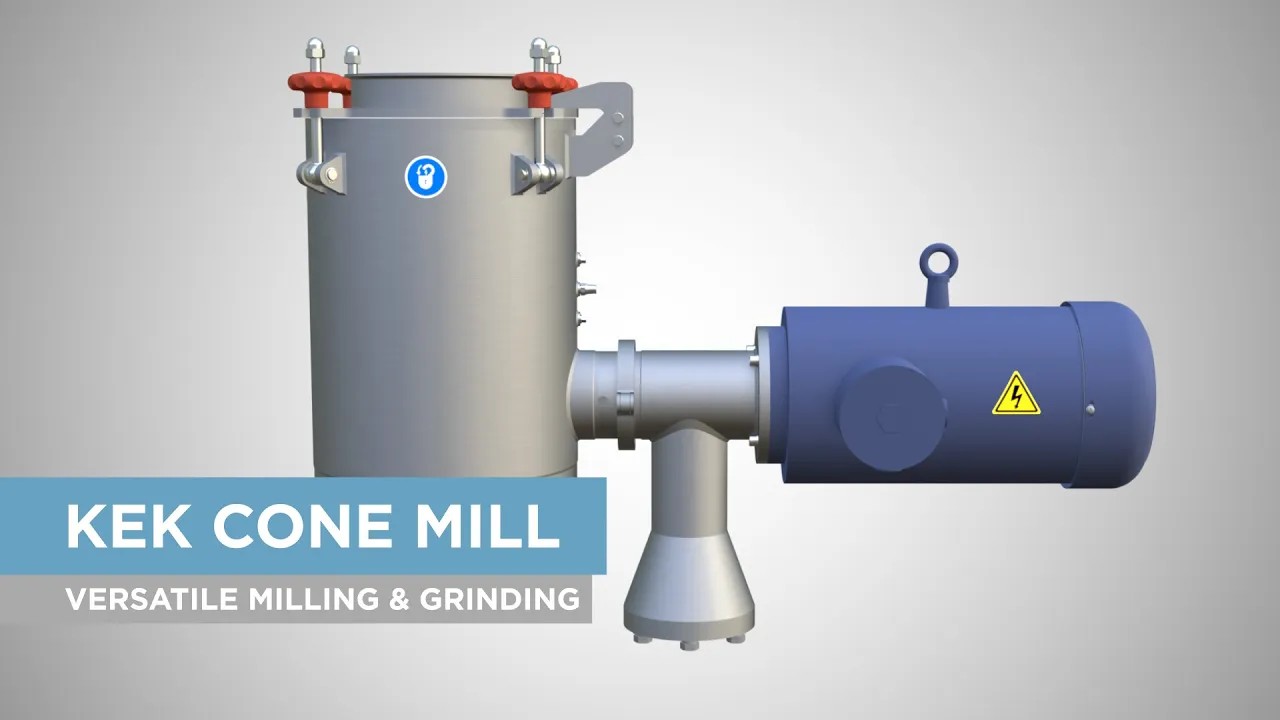

Watch the KEK cone mill in action — a high-speed, versatile milling machine for uniform sizing in food, pharma, and chemical processing. Ideal for both wet and dry granulation with full process control.
