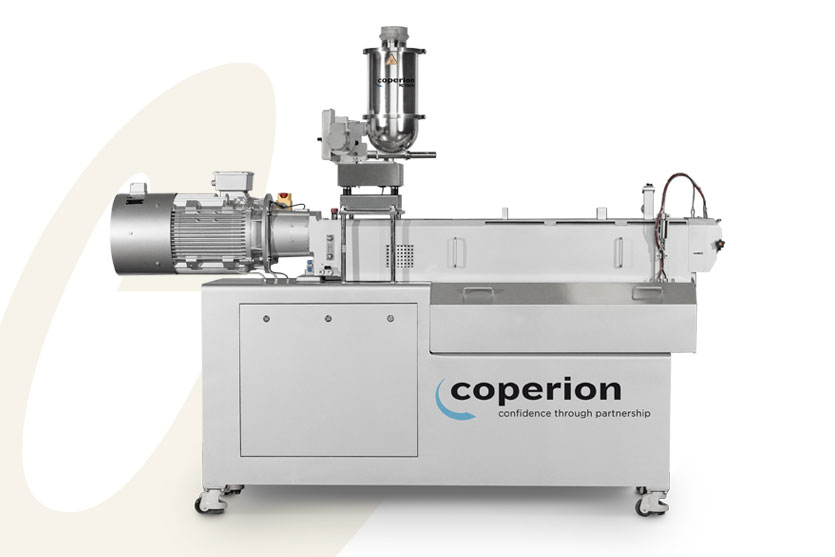

Laboratory extruder STS 25 Mc¹¹ for processing of smallest batch sizes
Laboratory extruder STS 25 Mc¹¹ for processing of smallest batch sizes
Download large image

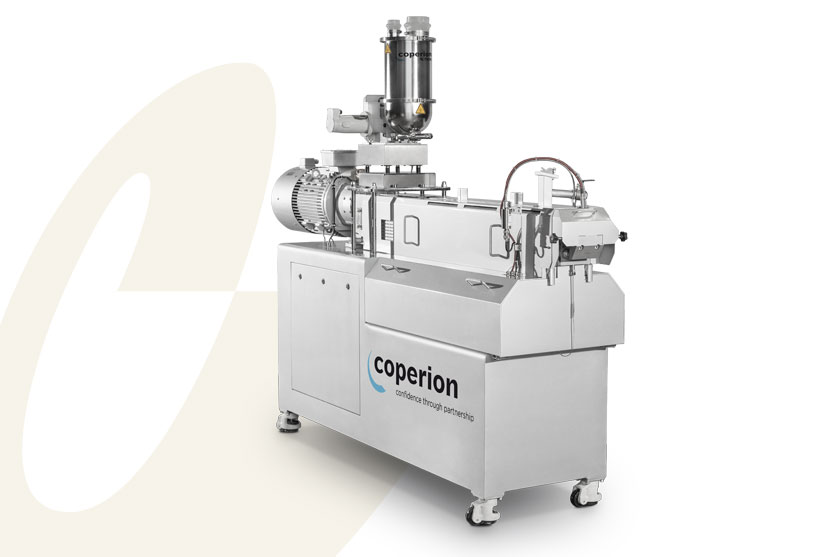

The STS 25 Mc¹¹ boasts all the advantages of the STS series.
The STS 25 Mc¹¹ boasts all the advantages of the STS series.
Download large image

Coperion twin screw compounder for processing smallest batch sizes

The laboratory extruder STS 25 Mc¹¹ is based on the successful STS technology. It was developed especially for the processing of smallest batch sizes.

The STS 25 Mc¹¹ boasts all the advantages of the STS series, has a simple design, is operator-friendly and easy to clean. The base frame has a closed, simple to clean surface and is equipped with castors for easy movement of the extruder and fast installation.

By having the same screw diameter ratio Do/Di of 1.55 and a specific torque Md/a³ of 11.3 Nm/cm³, production parameters of the STS 25 Mc¹¹ can be reliably scaled up to larger STS sizes which makes it the ideal compounding system for recipe development and basic scientific research.

Special Features

  • Small batches from 2 kg

  • Throughput rates of up to 110 kg/h

  • Precise scale up within STS family

  • Element flight depth of 4.55 mm enables good pellet feeding performance

  • Modular structure with exchangeable 4D barrels and all standard screw elements

  • Easy cleaning

  • Heater cartridges ensure uniform heating and energy savings

  • Small space requirement and movable wherever needed

  • Easy to operate by PLC and touch screen as option

Technical Data

Do/Di 1.55
Flight depth [mm] 4.55
Barrel length [mm] 100
Centerline height [mm] 1,100
Nm/shaft [Nm] 106
Specific torque Md/a³ [Nm/cm³] 11.3
Max. output speed [min-1] 1,200
Drive power [kW] 30
Overall dimensions (L x W x H) [mm] 2,570 x 550 x 1,455
